Location:Home » Product Center » Power Battery System » EV » EV Power Battery System of Electric Bus
-

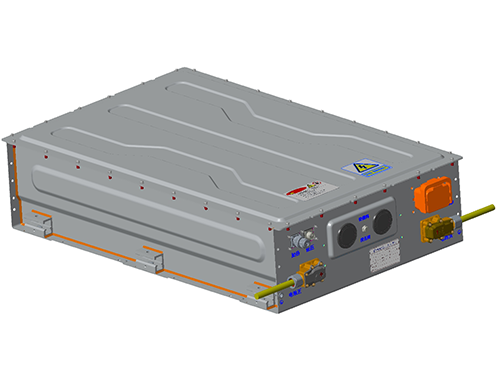

EV Power Battery System of Electric Bus
With the electrification of urban traffic, new energy commercial vehicles, especially new energy buses, have been rapidly applied. Provide a battery management system is stable and reliable and assembly services for electronic billion of new energy vehicle customers, effectively improve the vehicle mileage, life cycle, guarantee the high safety of the vehicle.
E-mail：nancy.zhao@hzepower.com
PRODUCT INFORMATION
1030*630*240mm, Single Box, 44S2P, Technical Parameters
| Rated voltage (V): | 140.8 (Customized) |
| Rated battery pack capacity (Ah): | 180 |
| Energy Density (Wh/Kg): | 123 |
| Voltage Range（V)： | 121~183 (Customized) |
| 10S maximum discharge current（A): | 540 |
| Recharging Current（A): | 90 (Customized) |
| Cycle life（times）: | >2000(80% DOD) |
| Battery Management system (BMS) operating voltage（DC V)： | 24 |
| SOC estimation accuracy: | <5% |
| Temperature difference: | <=8°C |
| Box size (mm) | 1030*630*240 |
| Thermal management methods: | Natural cooling |
| Application: | 8~8.5m, electric bus |
1030*630*240mm, Single Box, 40S2P, Technical Parameters
| Rated voltage (V): | 128 (Customized) |
| Rated battery pack capacity (Ah): | 180 |
| Energy Density (Wh/Kg): | 119 |
| Voltage Range（V)： | 110~166 (Customized) |
| 10S maximum discharge current（A): | 540 |
| Recharging Current（A): | 90 (Customized) |
| Cycle life（times）: | >2000(80% DOD) |
| Battery Management system (BMS) operating voltage（DC V)： | 24 |
| SOC estimation accuracy: | <5% |
| Temperature difference: | <=8°C |
| Box size (mm) | 1030*630*240 |
| Thermal management methods: | Natural cooling |
| Application: | 8~8.5m, electric bus |
1030*630*240mm, Single Box, 28S3P, Technical Parameters
| Rated voltage (V): | 89.6 (Customized) |
| Rated battery pack capacity (Ah): | 270 |
| Energy Density (Wh/Kg): | 121 |
| Voltage Range（V)： | 77~116 (Customized) |
| 10S maximum discharge current（A): | 650 |
| Recharging Current（A): | 90 (Customized) |
| Cycle life（times）: | >2000(80% DOD) |
| Battery Management system (BMS) operating voltage（DC V)： | 24 |
| SOC estimation accuracy: | <5% |
| Temperature difference: | <=8°C |
| Box size (mm) | 1030*630*240 |
| Thermal management methods: | Natural cooling |
| Application: | 10~10.5m, electric bus |
Electric Bus Recommendation System Solution
| Rated voltage (V) | Battery pack | Capacity（kWh） | Battery pack box combination | Box Qty | Energy Density | Cell Qty | Working voltage(V) |
| 563.2 | 2P176S | 101.4 | 4A1 | 4 | 122 | 352 | 440~642.4 |
| 550.4 | 2P172S | 99 | 3A1+1A2 | 4 | 119 | 344 | 430~627.8 |
| 537.6 | 2P168S | 96.8 | 2A1+2A2 | 4 | 119 | 336 | 420~613.2 |
| 524.8 | 2P164S | 94.5 | 1A1+3A2 | 4 | 119 | 328 | 410~598.6 |
| 512 | 2P160S | 92.2 | 4A2 | 4 | 119 | 320 | 400~584 |
| 537.6 | 3P168S | 145.2 | 6A3 | 6 | 121 | 504 | 420~613.2 |
